40mm Wide Aluminium Door Threshold T Bar Trim Adjustable Height/Pivots Easy Clip
Specifications:

• Quality professional Aluminium 40mm door threshold, that is adjustable in height & can also tilt if required to suit different level floors, it is supplied with small & large clips to accommodate different flooring heights.
• The threshold provides the perfect finish to any floor types.
• It is suitable for joining wood, laminate, tile and other flooring.
• These profiles can be easily cut to size using a hacksaw and secured to wood or concrete sub floor with nails or screws.

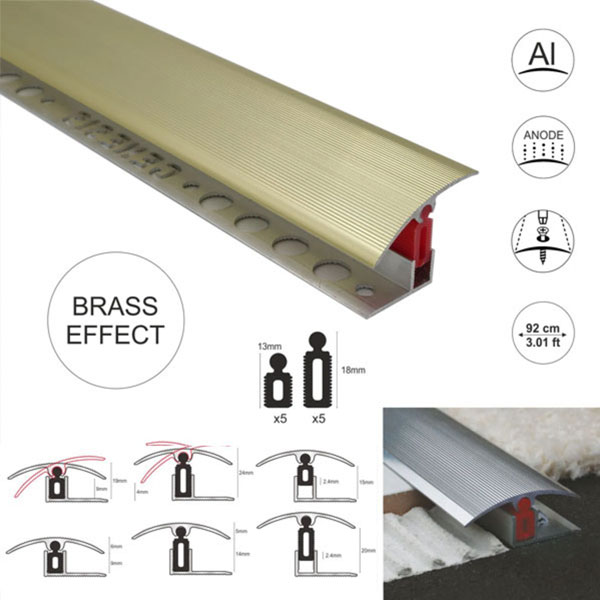

• Please look at the technical drawings to see few height options the profile can do.

Installation

1. Ensure that the cover is of adequate width to bridge the gap between the two floor coverings
2. Fit the Aluminium base securing with contact adhesive or mechanically fix
3. Slide the relevant sized clips onto the cover 2-3cm from either end with the remainder evenly spaced
4. Align clips with the base and apply even pressure lowering the clips into the Channel, once the connection is secure a rubber mallet can be used to achieve the final position.

• Maximum height of floors on different level is 24mm
• Covers flooring at the same level from 9mm up to 20mm in height
• Suitable for All types of flooring
• Easy Clip Easy Fit System
• Screws are required for fitting

Dimensions:

• 920mm x 40mm
